SW-350 COMPUTER SCREEN HORIZONTAL AUTOMATIC PACKING MACHINE

雙變頻、步進、伺服控制系統可供選擇，袋長即設即切，無需調節空走，一步到位，省時省膜。

電腦屏枕式自動包裝機是一體化，光電檢測和微電腦程序自動控制的多用途枕式自動包裝機。該機集送料、制袋、填充、封切等包裝工序于一體，由電腦跟蹤、微電腦控制器、自動糾偏而保證了包裝袋的長度溫度，圖形完整美觀。

特點：交流電機附置雙變頻，實現變頻調速；采用微電腦程序控制、自動設定長度、數字顯示袋長，包裝速度和數量；電眼跟蹤準確、自動糾偏，圖形完整美觀,密封性好，封口清晰，結構緊湊，運轉平穩，噪音低，包裝規格任意化，成袋器可調節，在包裝尺寸范圍內適應不同規格固態產品。

適用范圍：適用于餅干、米通、雪餅、面包、月餅、方便面、米粉、日用品、工業零件、紙盒或托盤等各類有規則物料包裝。

This horizontal packing machine contains selectable double frequency conversions, stepping and servo controlling system, the package film could be set up and cut in one time and not need to make film testing, it is greatly save time and package film.

This horizontal packing machine is an integrated, photoelectric detected and microcomputer automatic controlled multi-function automatic packing machine, It can automatic finish material sending, bag making, material filling, package film cutting and sealing etc. All actions are tracked and controlled by microcomputer to make sure the stable length and beautiful sealing surface of the package.

Main feature: AC motor with double frequency conversions speed control system, automatic package length setting and data showing, exact electronic eye phone tracking and automatic adjusting, which are well guarantee the beautiful sealing surface, good airproof performance , compact package structure, smooth operation and lower noise. The package size it may adjusted and suitable for different solid materials

Applications: it is suitable for packing regular solid material such as biscuits, pies, bread, moon-cakes, fast noodles, drugs, daily use, industrial spare parts, paper boxes, plates, etc.

型號 Model

SW-350

包裝速度 Packing Speed:

20-200包/分鐘

包裝物料尺寸 Material size

長:40-140mm

寬:30-80mm

高:5-30mm

可調

包裝紙長度 The length of the film

70-280mm

包裝物料卷盤尺寸

The max rolling plate dimension of machine

Φ 400*220mm

總功率 Total Power

3.2Kw

電壓 Voltage

220V 50Hz

主電機功率 Motor Power

0.75KW

加熱器功率 Heater power

2.5KW

外形尺寸 Outside dimension

4000*950*1500mm

整機重量 Gross Weight

300KG

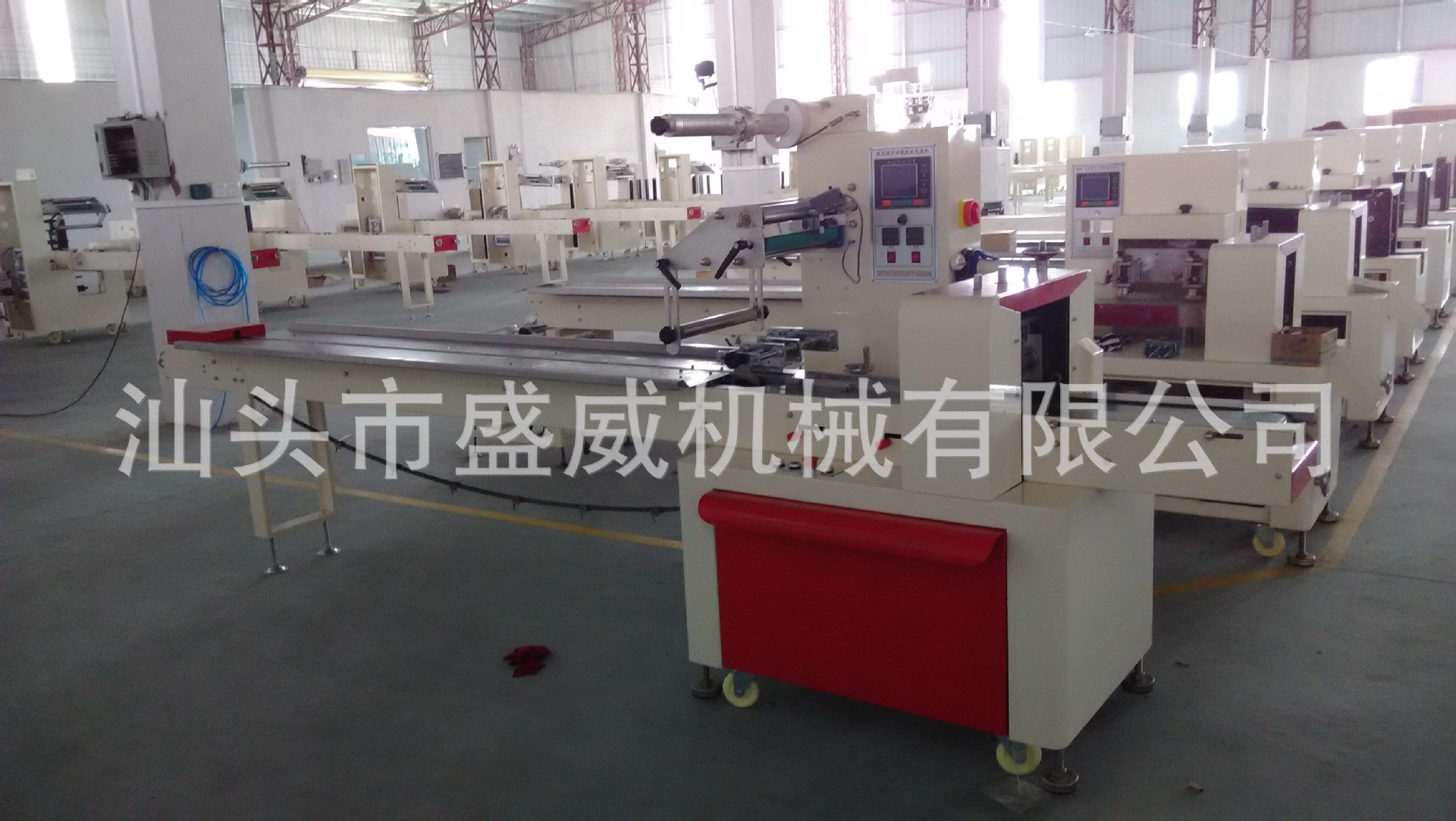

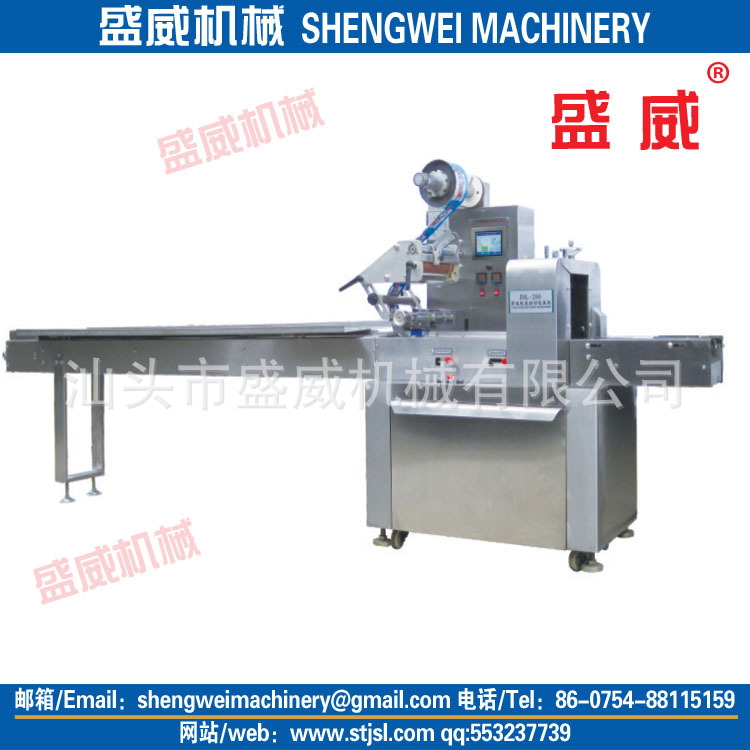

機器圖片
