Irrigation Cable UL1263 Sprinkler System
- 總供應量500
- 青島青纜科技有限責任公司
- 經營模式：生產廠家
- 所在地區：山東省 青島市
- 登錄后查看更多信息
- 是產品認證ULPVC標稱截面awg（mm2）
- 多芯品牌qingkai裸銅線電線最大外徑perstandard（mm）
NEC article 675
Irrigation Machine.An electrically driven or controlled machine, with one or more motors, not hand portable, and used primarily to transport and distribute water for agricultural purposes.

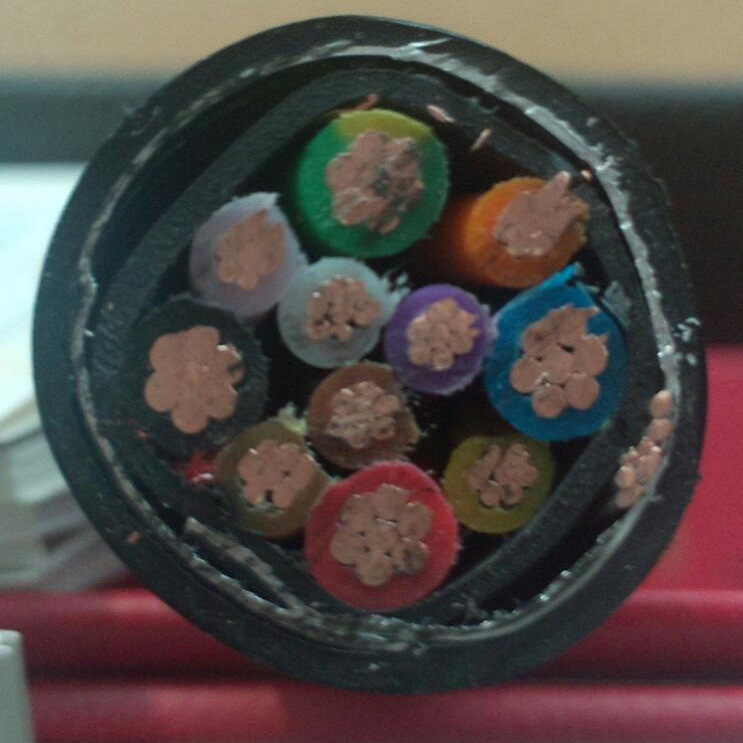

675.4 IRRIGATION CABLE
(A)ConstructionThe cable used to interconnect enclosures
on the structure of an irrigation machine shall be an assembly
of stranded, insulated conductors with nonhygroscopic and nonwicking filler in a core of moisture- and flame-resistant nonmetallic material overlaid with a metallic covering and jacketed with a moisture-, corrosion-, and sunlight-resistant nonmetallic material.
The conductor insulation shall be of a type listed in Table 310.13 for an operating temperature of 75℃ (1670F) and for use in wet locations. The core insulating material thickness shall not be less than 0.76 mm (30 mils), and the metallic overlay thickness shall not be less than 0.20 mm(8 mils). The jacketing material thickness shall not be less than 1.27 mm (50 mils).
A composite of power, control, and grounding conductors in the cable shall be permitted.
-
